HM-DP4030D Automatic Rigid Box Machine product introduction

HM-DP4030D Automatic Rigid Box Machine with Double Wrapper, which suitable for medium-size premium boxes
in mass production. It is suitable to make various types of rigid boxes such as jewelry boxes, mobile phone boxes, gift
boxes, cosmetic boxes, watch boxes, etc. Its maximum length 400mm and maximum width 300mm,Size range is bigger,
more suitable for current packaging market. Machine's appearance is new design which is safer and more beautiful.

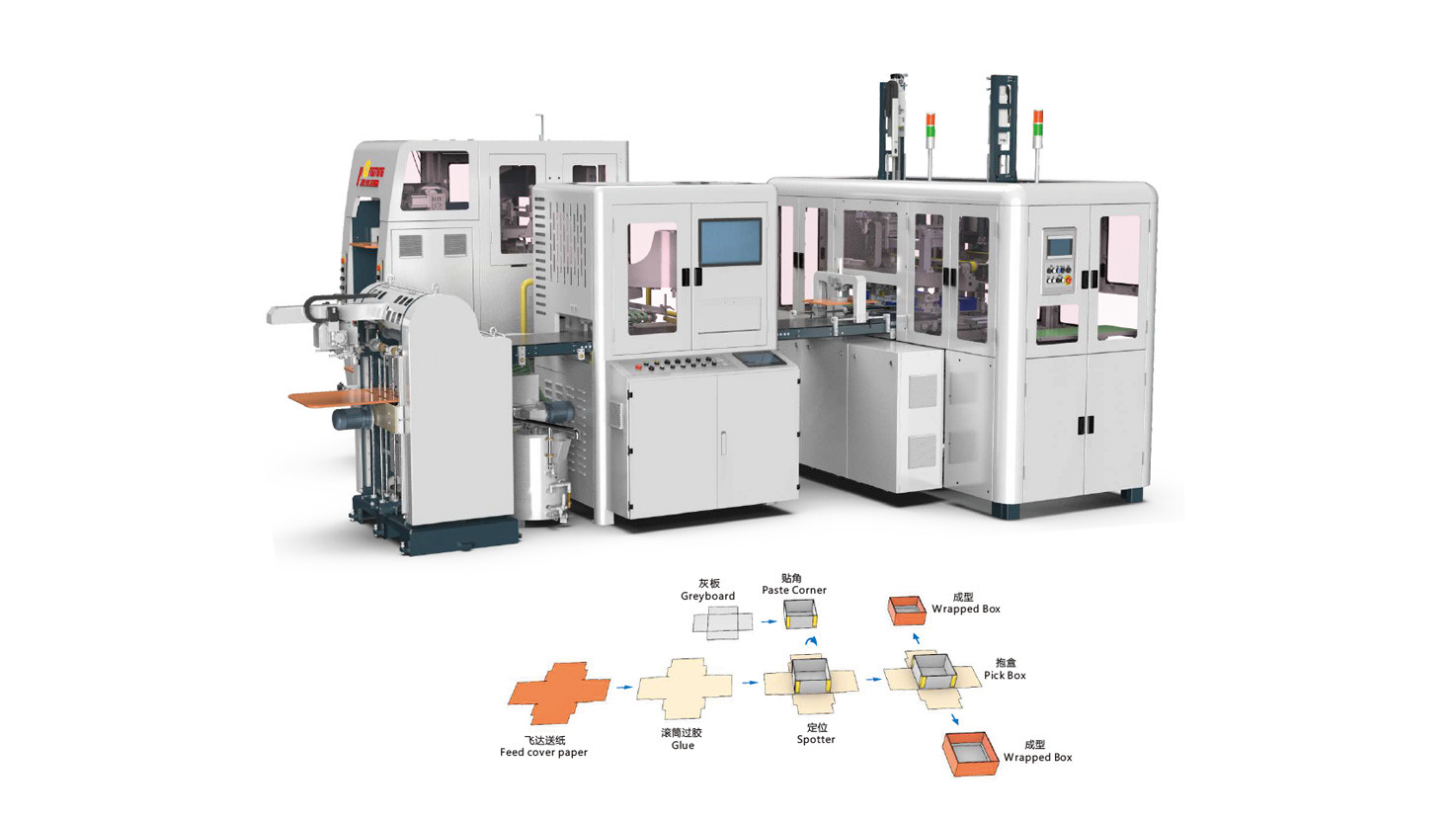

HM-DP4030D adopts PLC and man-machine control, camera tracing system, and can automatically feed cover paper,
feed greyboard, paste four corners, spot greyboard, lift box, wrap box, fold corner edges and form box.
The feeder, the gluer and the conveyor are driven by servos, the machine has continuously variable transmission
and enjoys high accuracy, easy adjusting, and less time consumption. The spotting unit adopts camera tracing system
and robot arm to pick and spot the greyboard ,enhancing the spotter accuracy to ± 0.05mm. The forming unit employs
Japan THK linear slider and virtual cam driving system, guaranteeing the stable quality and fluent movement and
enlarge the folding-in depth and corner edges.

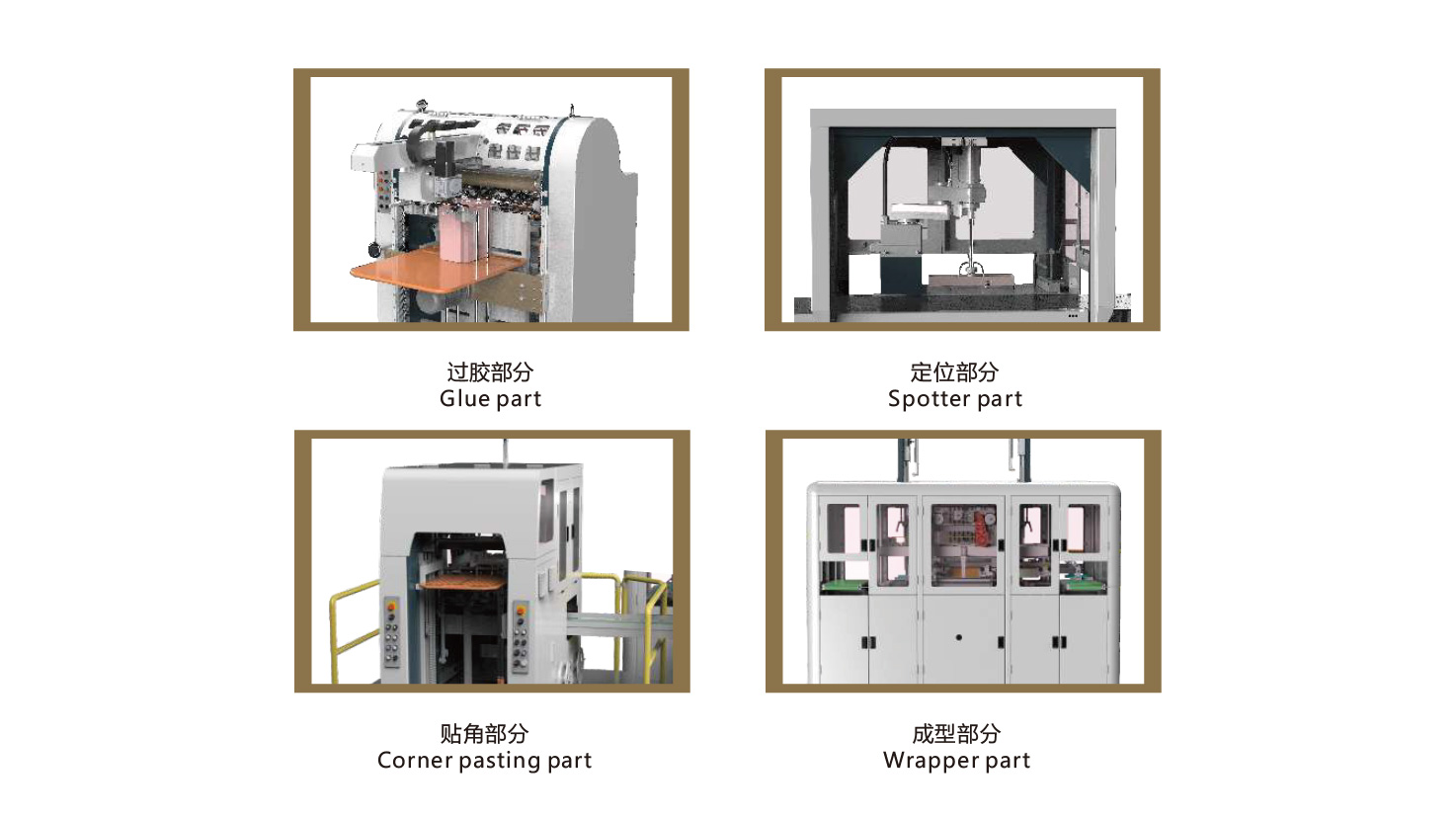

HM-DP4030D Automatic Rigid Box Machine unit features and standard equipment

1. Suit to all kinds of rigid boxes in mass production;
2. Double-station forming;
3. Parametric intelligent adjustment;
4. The long side and short side are layered and formed;
5. The cam box can participate in motion control as a whole; (Details please check the note)
6. Parameters adopts computer digital setting ;
7. The box-out direction is parallel to the main conveyor belt;
8. Auto error stop and display;
9. Automatic feed paper and greyboard;
10. 24-hour glue timing heating function;
11. Wrapper can input 300 product formulas;
12. Corner pasting part with independent man-machine control and heating system; (Details
please check the note)
13. Multifunctional Robot Vision Image Positioning System (spotting accuracy ±0.05mm);
(Details please check the note)
14. Wrapper can automatic lift and wrap box; (Details please check the note)
15. Automatic control system for glue viscosity(optional)；(Details please check the note)
16. Digital setting with memory system(optional)；(Details please check the note)
17. Bottom mould use Piston type；(Details please check the note)
18. Main Slider and pull mold section synchronized; (Details please check the note)

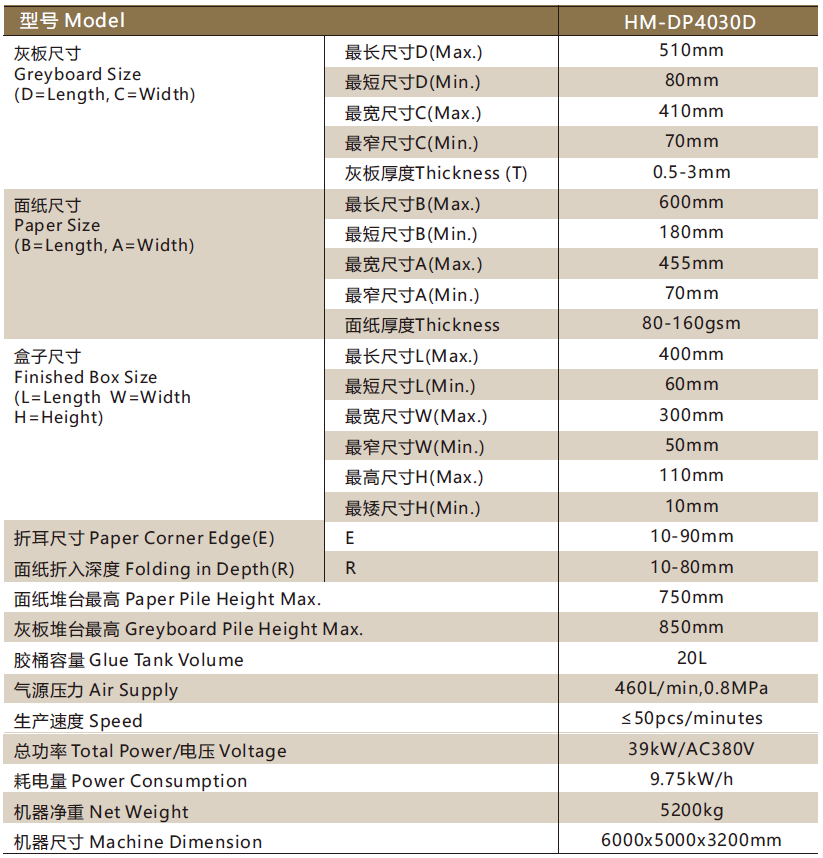

The main technical parameters of HM-DP4030D Automatic Rigid Box Machine
